Water Treatment Applications Using Advanced UV Technology

UV disinfection systems are used around the world in a wide variety of commercial and industrial applications. Users are constanly challenged by new and emerging pathogens and water treatment systems should always provide adequate protection as contaminants are identified and researched. Wyckomar has manufactured many types and styles of commercial and industrial UV systems and has amassed a significant amount of experience to provide off-the-shelf or custom UV disinfection solutions for your C-I applications.

Wyckomar designs and builds systems to provide industry standard UV dose applications as laid out by ANSI 55 and requested by EPA. Further we build UV systems to meet specific UV dose requirements as set out by industry-specific requirements as applicable. As UV manufacterers and water system integrators, Wyckomar strives to stay on top of todays's advanced water treatment technologies. We apply those technologies that are known to be safe, effective, environmentally friendly and affordable.

This project gallery covers just a fraction of possible water treatment applications but we encourage you to take ideas and solutions from here when considering your water treatment project.

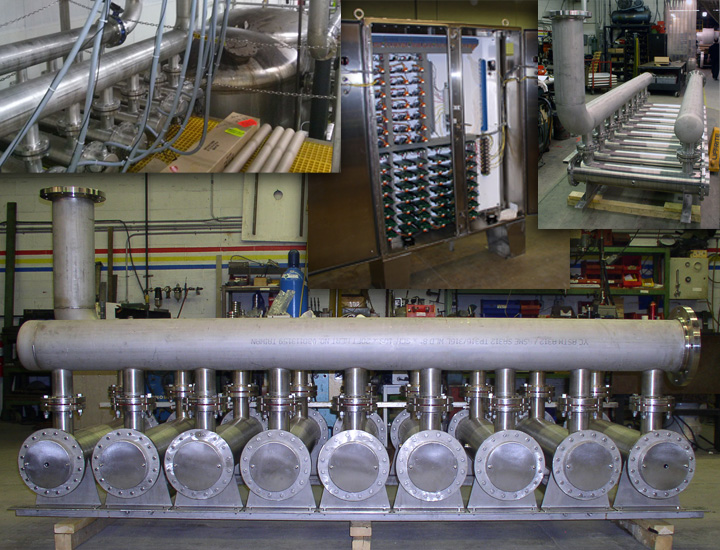

These types of systems employing multiple units of the models UV-100 and UV-5007 are used in a wide variety of food processing applications including manufacturing, preparation and packaging as well as bottling.

The major advantage of using this type of UV disinfection system for your process is that the system may be modified and designed to provide disinfection at high flow rates, or to provide very high UV dose applications or a combination of both.

Systems are available in a wide variety of power configurations and with a number of options that may suit your application including flow restrictors, custom inlet/outlet sizes and types (e.g. Flanges, NPT, BSP) and more

Highly flexible design - efficient and compact footprint - scaleable for both UV dose and flow rate.

Juice Maker

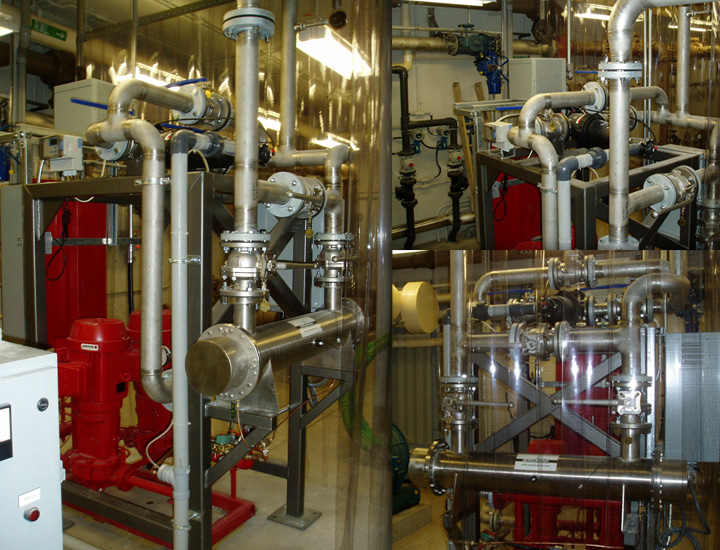

This UV system is designed to provide UV disinfection and filtration for the incoming water at a Canadian juice manufacturing plant. The small footprint of the design was suitable for the space available and the system is easily accessible for maintenance and cleaning.

Extreme UV Dose

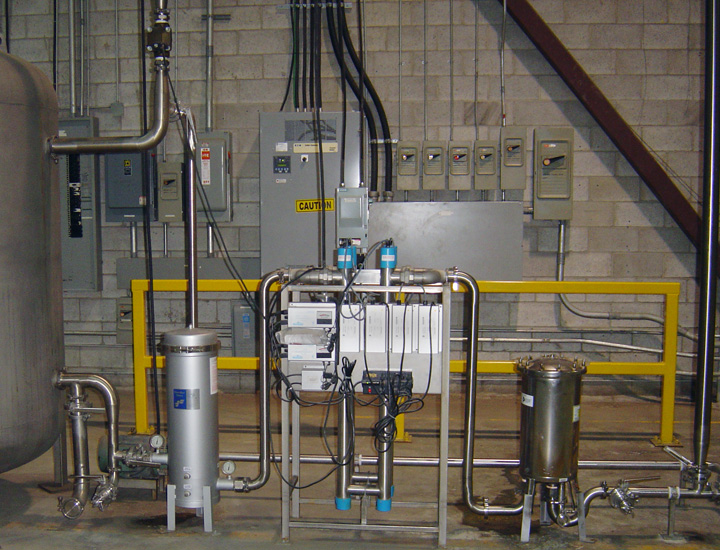

This UV system is in place at a Canadian bottling plant and is designed to provide a very high UV dose well in excess of standard drinking water systems. The system was custom designed using our model UV-5007 sterilzers mounted in parallel to provide high volume throughput at extreme UV dose levels.

Bottling Plant

This UV system is integrated into a complex bottling plant in Japan. The unit was selected due to it's compact size and the combination of high-volume throughput and high UV dose applied.

Healthy water means healthy livestock. Wyckomar UV systems are in use on a variety of farm water projects for cattle, poultry and other on-farm applications in Canada and the US.

Aquaculture Factory

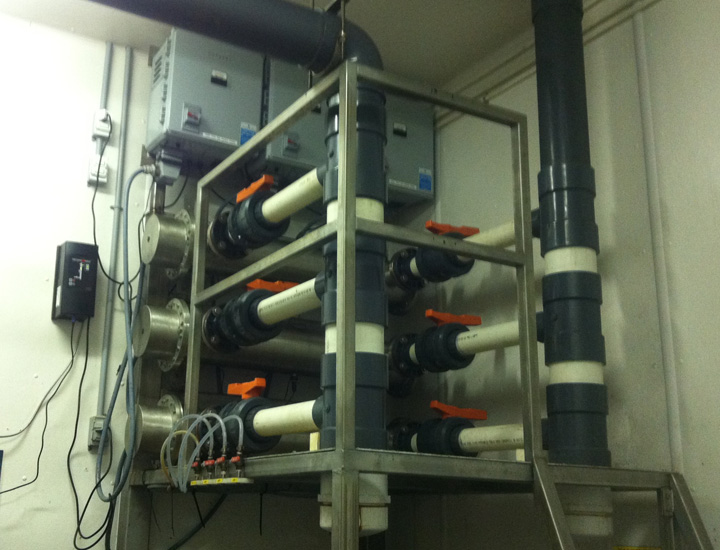

These systems model UV-5007 are installed in an aquaculture project in Eastern Canada and are used in parallel to provide large volume flow rates along with a UV dose to kill all pathogens in the water used to raise fish. This is a recirculating system.

Greenhouse - Hydroponics

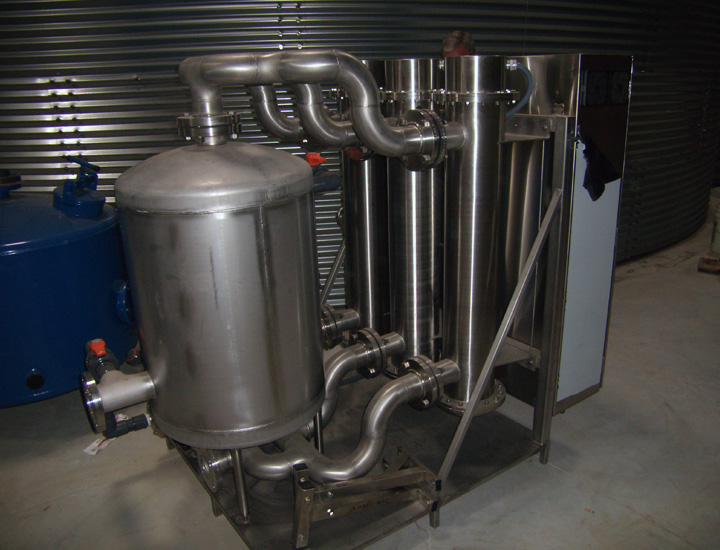

This custom UV configuration was designed for adaptation with an ozone generation system for use in the hydroponics industry in Southern Ontario Canada. Custom UV designs are required in a variety of applications when additional treatment technologies are employed. Providing a UV system that meets the needs of specific applications is our specialty.

General Industrial / Commercial Applications

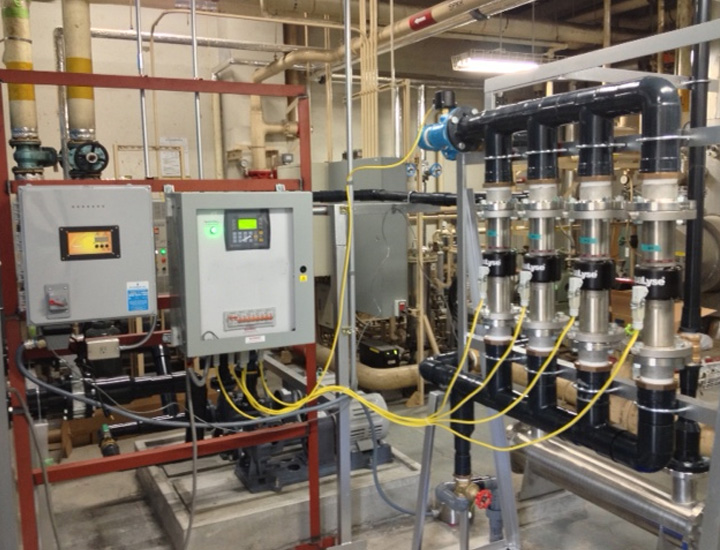

This UV system was integrated into a building maintenance system used to provide disinfected water for a number of different uses including drinking water and lab use.

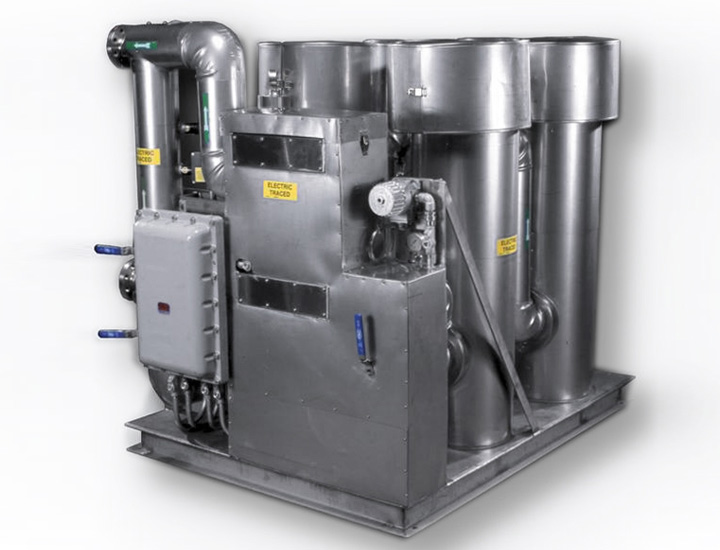

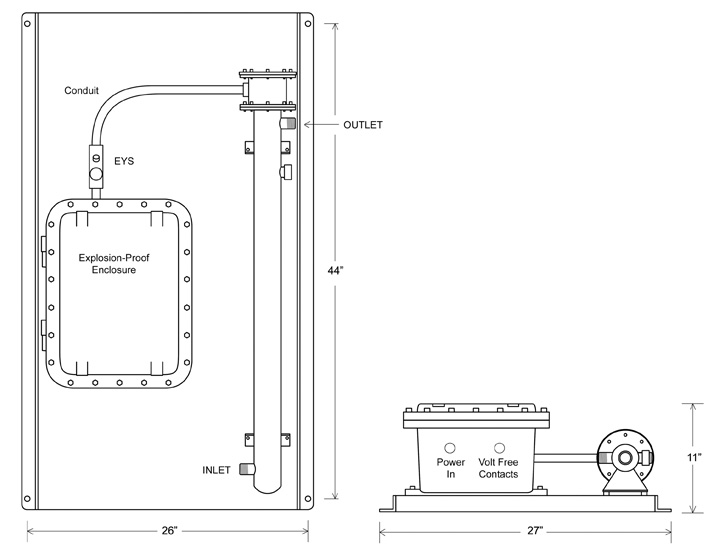

There is a growing demand for water treatment in hazardous locations such as distilleries and oil-services facilities. Wyckomar can provide certified hazardous location UV treatment and filtration systems according to your requirements. Our systems are installed in off-shore platforms among other locations.
