Model UV-250 Pre-Assembled

SYS250-POU-1/2

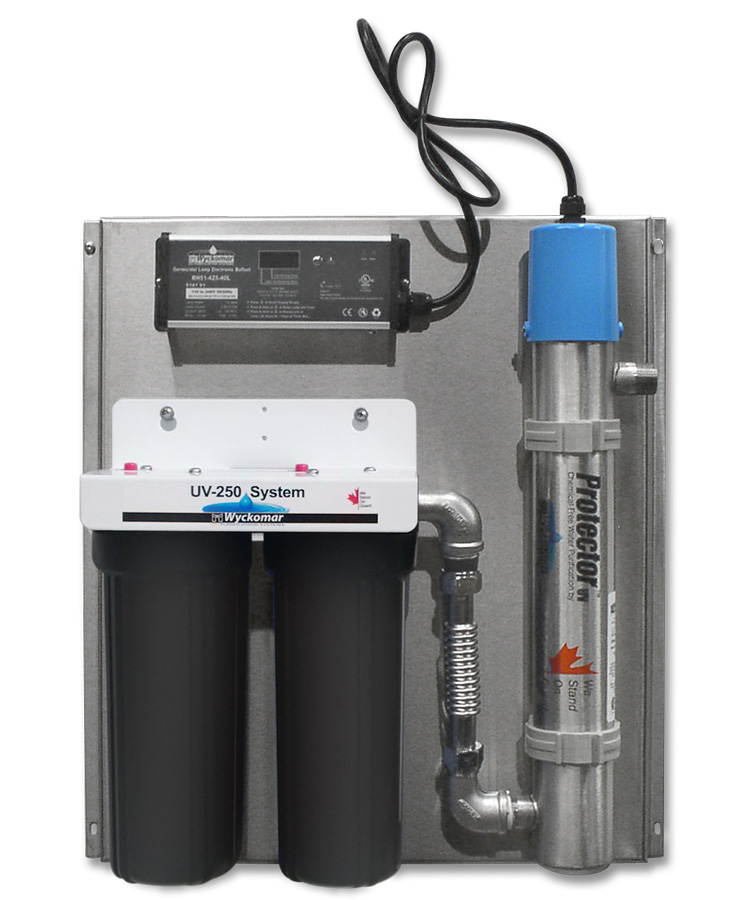

The SYS-POU250 is an All-in-One Water Treatment System that is sized for the needs of the average household (up to 3 people) or cottage to provide complete purified drinking water for domestic use. Typically installed at the point of use, it is used for treating municipal water as well as ground water from drilled or dug wells, and surface water from lakes, ponds or rivers. It will purify the water from most contaminants such as sediments, rust and pesticides with filtration down to 5 micron. Carbon filtration reduces taste and odour, including sulphur smell and chlorine residuals.

Harmful microorganisms such as viruses, bacteria and protozoa are killed with a powerful UV disinfection dose that will inactivate the pathogens at a kill rate of 99.99% (log4) (Giardia, E. coli, Cryptosporidium, Vibrio cholerae, Legionella, Salmonella, Shigella, Streptococcus and many others).

• Flow Rate: (limited by filter selection)
  up to 4 GPM / 15 LPM

• Filtration System: 10" SlimLine

• Sediment Filter: 5 Micron Poly Spun

• Carbon Filter: 10 Micron Carbon Block

• Electronic Ballast w/ Operation Count: 4-BE-425-ECO-R

• UV Replacement Lamp: RL-23/436T5

• Replacement Quartz Dome: RQD-438

• Plumbing: 3/4" In/Out

• Mounted on Stainless Steel Backpanel

Links for more info (Specifications Sheet, Technical Drawing, Technology, System Components

Specs   Drawing   UV Technology

Pathogens that are inactivated by this UV sterilizer:
Anthrax, Chlorella, Clostridium, Coxsackie, Cryptosporidium parvum, E. coli, Giardia lamblia, Hepatitis, Influenza, Legionella, Listeria, Micrococcus, Paramecium, Polio, Pseudomonas, Salmonella, Shigella, Streptococcus, Toxoplasma, Vibrio cholerae
and many more. (See comprehensive UV Inactivation Chart)
