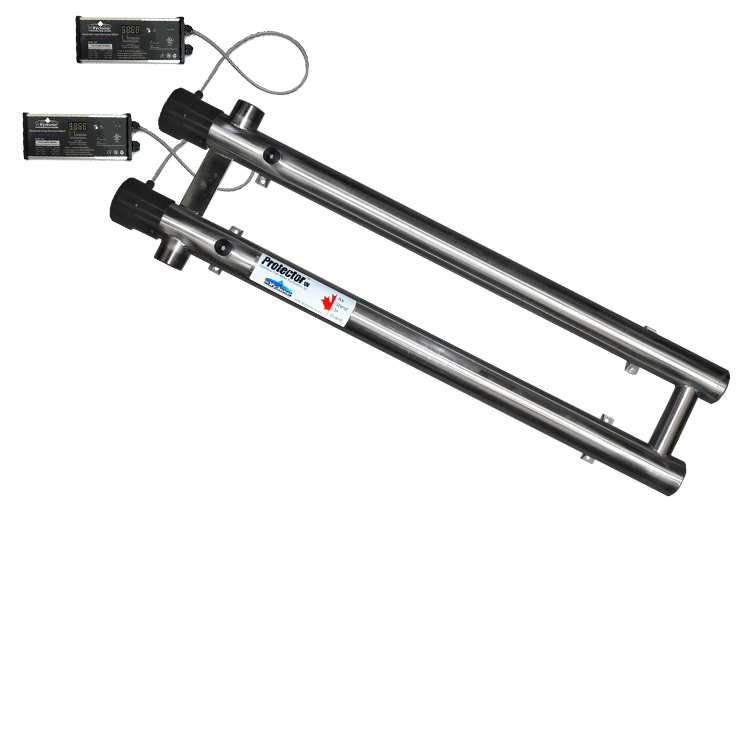

Model UV-6000 Ultra Violet Sterilizer

P6000/QS4E-1/2

The UV-6000 is a robust, high quality ultra-violet sterilizer that offers very efficient treatment at a low cost per unit volume. Typically installed at the point of entry, it can treat municipal water as well as ground water from drilled or dug wells, or surface water from lakes, ponds or rivers (pre-filtration necessary). This sterilizer is perfectly sized to provide drinking water or purified process water for commercial and light industrial applications, including food and beverage processing, pharmaceutical manufacturing, or cooling towers. It is also very popular for the disinfection of pools and spa's.

The UV-6000 sterilizer will purify the water from most common contaminants. Bacterial, viral and other pathogens are inactivated by a high intensity UV dose that kills harmful microorganisms such as E. coli and Giardia at a 99.99% kill rate.

• Flow Range: 54.1 - 132 GPM / 205 - 500 LPM

• Chamber Material: 316L SS

• UV Dose (at 95% UVT):
  16 mJ/cm² at 132 GPM / 500 LPM,
  30 mJ/cm² at 71.3 GPM / 270 LPM,
  40 mJ/cm² at 54.1 GPM / 205 LPM

• Monitoring System: Optional

• Electronic Ballast w/ Operation Count: 4-BE800-14/30-ECO

• UV Replacement Lamp: RL-100/1197T6

• Replacement Quartz Dome: RQD-1190

• Plumbing: 2" MNPT In/Out (50 mm BSP optional)

More info (Specifications Sheet, Technical Drawing, Technology Overview) can be downloaded here

Spec Sheet   Tech Drawing   UV Technology Info

Pathogens that are inactivated by this UV sterilizer:
Anthrax, Chlorella, Clostridium, Coxsackie, Cryptosporidium parvum, E. coli, Giardia lamblia, Hepatitis, Influenza, Legionella, Listeria, Micrococcus, Paramecium, Polio, Pseudomonas, Salmonella, Shigella, Streptococcus, Toxoplasma, Vibrio cholerae
and many more. (See comprehensive UV Inactivation Chart)
