Model UV-1400 System Complete - Single Filter

SYS1400/QD4E-1BB

The SYS1400 is an All-in-One Water Treatment System that is compact but designed for the needs of the larger household (up to 10 people) or light commercial application to provide complete purified drinking water. Typically installed at the point of entry, it is used for treating municipal water as well as ground water from drilled or dug wells, and surface water from lakes, ponds or rivers. It will purify the water from most contaminants such as sediments, rust and pesticides with filtration down to 5 micron.

Harmful microorganisms such as viruses, bacteria and protozoa are killed with a powerful UV disinfection dose that will inactivate the pathogens at a kill rate of 99.99% (log4) (Giardia, E. coli, Cryptosporidium, Vibrio cholerae, Legionella, Salmonella, Shigella, Streptococcus and many others).

• Flow Rate: (limited by filter selection)
  14 GPM / 53 LPM

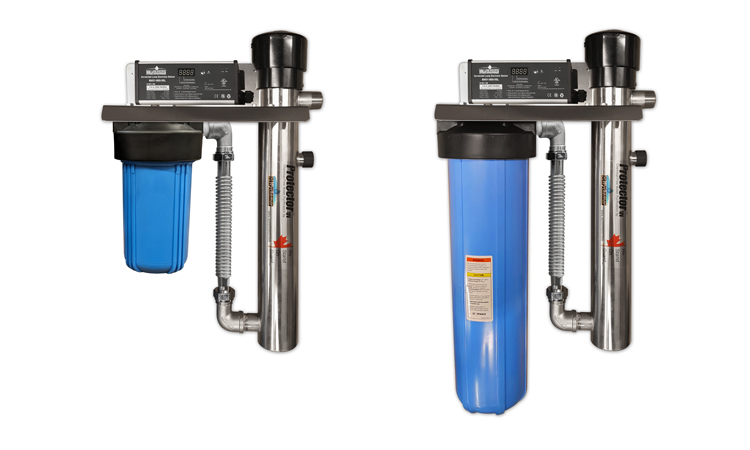

• Filtration System: Single 10" or 20" BigBlue

• Sediment Filter: 5 Micron Melt Blown or Pleated Cell

• Electronic Ballast w/ Operation Count: 4-BE800-14/30ECO

• UV Replacement Lamp: RL-51/540T5

• Replacement Quartz Dome: RQD-530

• Plumbing: 1" In/Out

Links for more info (Specifications Sheet, Technical Drawing, Technology, System Components

Specs   Drawing   UV Technology

Pathogens that are inactivated by this UV sterilizer:
Anthrax, Chlorella, Clostridium, Coxsackie, Cryptosporidium parvum, E. coli, Giardia lamblia, Hepatitis, Influenza, Legionella, Listeria, Micrococcus, Paramecium, Polio, Pseudomonas, Salmonella, Shigella, Streptococcus, Toxoplasma, Vibrio cholerae
and many more. (See comprehensive UV Inactivation Chart)
