Model UV-1400 System Complete - Dual Filter

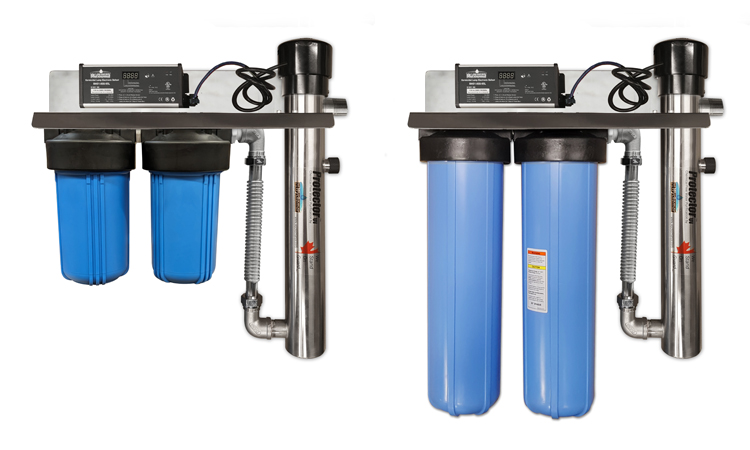

picture of the Wyckomar UV1400 System Dual Pre-filter

SYS1400/QD4E-2BB

The SYS1400 is an All-in-One Water Treatment System that is compact but designed for the needs of the larger household (up to 10 people) or light commercial application to provide complete purified drinking water. Typically installed at the point of entry, it is used for treating municipal water as well as ground water from drilled or dug wells, and surface water from lakes, ponds or rivers. It will purify the water from most contaminants such as sediments, rust and pesticides with filtration down to 5 micron. Carbon filtration reduces taste and odour, including sulphur smell and chlorine residuals.

Harmful microorganisms such as viruses, bacteria and protozoa are killed with a powerful UV disinfection dose that will inactivate the pathogens at a kill rate of 99.99% (log4) (Giardia, E. coli, Cryptosporidium, Vibrio cholerae, Legionella, Salmonella, Shigella, Streptococcus and many others).

  • Flow Rate: (limited by filter selection)
    14 GPM / 53 LPM

  • Filtration System: Dual 10" or 20" BigBlue

  • Sediment Filter: 5 Micron Melt Blown or Pleated Cell

  • Carbon Filter: Non-Cellulose Carbon-Impregnated Pleated Polyester, 10 M

  • Electronic Ballast w/ Operation Count: 4-BE800-14/30ECO

  • UV Replacement Lamp: RL-51/540T5

  • Replacement Quartz Dome: RQD-530

  • Plumbing: 1" In/Out


Links for more info (Specifications Sheet, Technical Drawing, Technology, System Components

specs icon Specs   drawings icon Drawing   description icon UV Technology


Pathogens that are inactivated by this UV sterilizer:
Anthrax, Chlorella, Clostridium, Coxsackie, Cryptosporidium parvum, E. coli, Giardia lamblia, Hepatitis, Influenza, Legionella, Listeria, Micrococcus, Paramecium, Polio, Pseudomonas, Salmonella, Shigella, Streptococcus, Toxoplasma, Vibrio cholerae
and many more. (See comprehensive UV Inactivation Chart)
