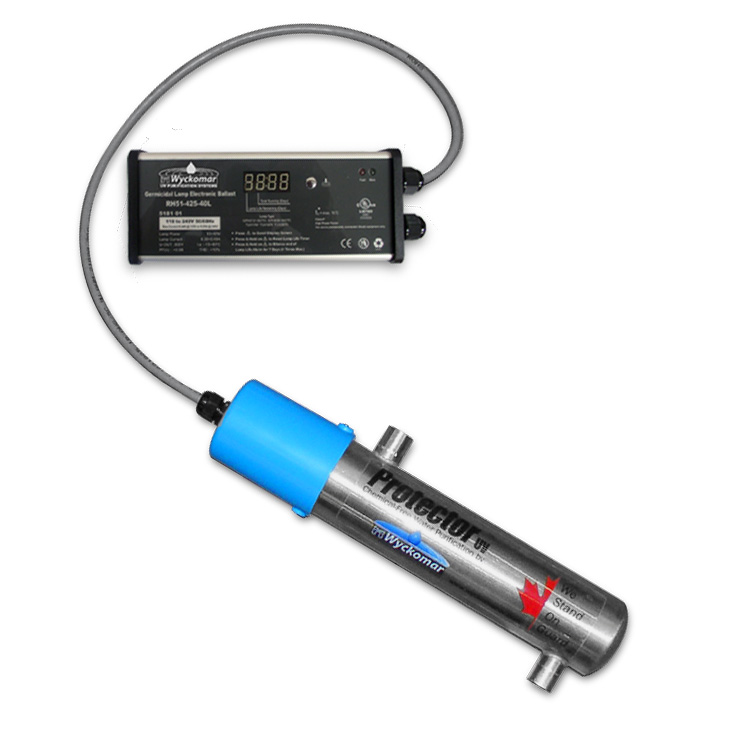

Model UV-1 Ultra Violet Sterilizer

P1/QD4E-1/2

The UV-1 is a robust, efficient and costeffective ultra-violet sterilizer designed for the disinfection of drinking water in the average household at a flow range between 2.4 and 5.8 GPM (9 - 22 LPM). Typically installed at the point of use (e.g. under the sink), it can treat municipal water as well as ground water from drilled or dug wells, and surface water from lakes, ponds or rivers. Other applications for this sterilizer are for the purification of process water in laboratories and dental offices, or the prevention of biofouling in RO Systems.

The UV-1 sterilizer will purify the water from most common contaminants. Bacterial, viral and other pathogens are inactivated by a high intensity UV dose that kills harmful microorganisms such as E. coli and Giardia at a 99.99% kill rate.

• Flow Range: 2.4 -5.8 GPM / 9 - 22 LPM

• Chamber Material: 304L SS (316L SS available)

• UV Dose (95% UVT):
  16 mJ/cm² at 5.8 GPM / 22 LPM,
  30 mJ/cm² at 3.1 GPM / 12 LPM,
  40 mJ/cm² at 2.4 GPM / 9 LPM

• Electronic Ballast w/ Operation Count: 4-BE-425-ECO-R

• UV Replacement Lamp: RL-12/254T5

• Replacement Quartz Dome: RQD-269

• Plumbing: 3/8" FNPT In/Out

More info (Specifications Sheet, Technical Drawing, Technology Overview) can be downloaded here

Spec Sheet   Tech Drawing   UV Technology Info

Pathogens that are inactivated by this UV sterilizer:
Anthrax, Chlorella, Clostridium, Coxsackie, Cryptosporidium parvum, E. coli, Giardia lamblia, Hepatitis, Influenza, Legionella, Listeria, Micrococcus, Paramecium, Polio, Pseudomonas, Salmonella, Shigella, Streptococcus, Toxoplasma, Vibrio cholerae
and many more. (See comprehensive UV Inactivation Chart)
